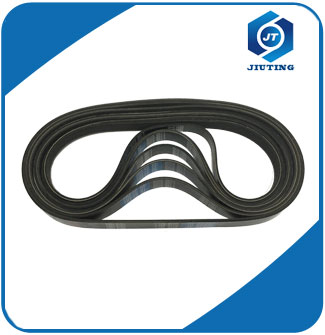

Material: CR
Feature:
· Low bearing load
· Wear resistant
· Hydrolysis resistant
· Low noise
· Highly flexible
· Constant length, no post-elongation
· Low pre-tension
· Tropical climate resistant
------------------------------------------------------------------------------------------------Material: EPDM
Feature:
· Use modified EPDM rubber and special formula, more resistant to high temperature and aging resistant, can work long time in the environment of 150℃.
· Wedge surface contains special fiber, can reduce noise, can increase the belt transmission efficiency.
· High strength heat memory tension line, keep the length constant and extend the service life.
· Precise grinding technology to make sure the angle exactly and operation steady.
· High quality rubber with competitive prices, best service.

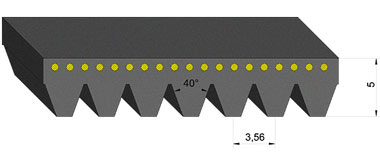

| Tape | Rib section | Angel of rib | Belt width | Belt thickness | Rib number | Length range |
| 3pk | 3.56 | 40 | 10 | 4.8 | 3 | 600-2400mm |
| 4 pk | 3.56 | 40 | 13.6 | 4.8 | 4 | 600-2400mm |
| 5 pk | 3.56 | 40 | 17 | 4.8 | 5 | 600-2400mm |
| 6 pk | 3.56 | 40 | 20.7 | 4.8 | 6 | 600-2400mm |
| 7 pk | 3.56 | 40 | 24.3 | 4.8 | 7 | 600-2400mm |
| 8 pk | 3.56 | 40 | 27.8 | 4.8 | 8 | 600-2400mm |
| 9 pk | 3.56 | 40 | 31.4 | 4.8 | 9 | 600-2400mm |
| 10 pk | 3.56 | 40 | 35 | 4.8 | 10 | 600-2400mm |

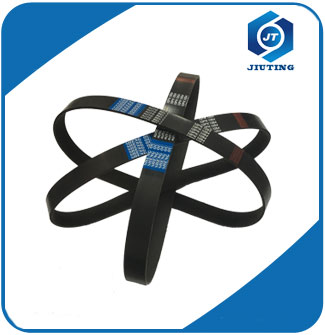

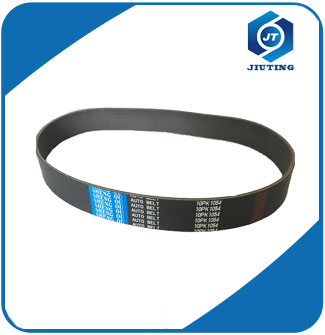

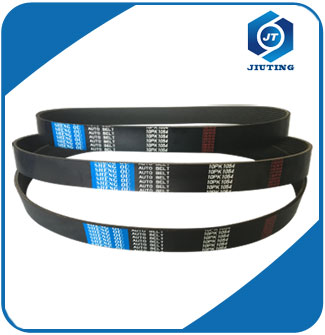

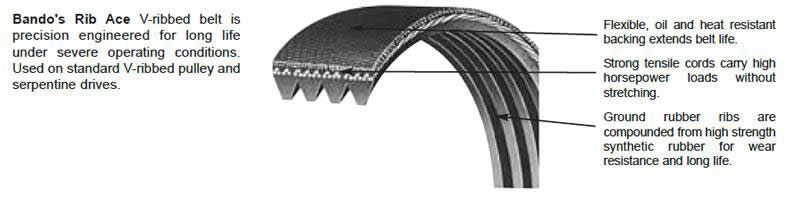

Detail of products
· Wide breadth but thin belt, excellent elastic and flexible property
· High transmission efficiency under the operating environment of high-speed rotation, reverse flexible, small band pulley, etc.Core rubber with high tension and low elongation, while the consistent tension is maintained
· during the process of operation
· Excellent heat-resistance, oil-proof, and wearing resistance
· Less slip while large transmission effect during the process of operation
· Less noise during the process of operation

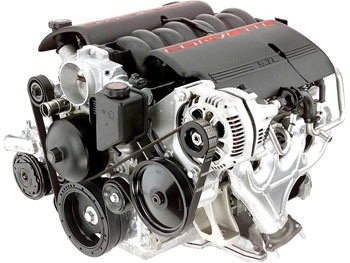

APPLICATION

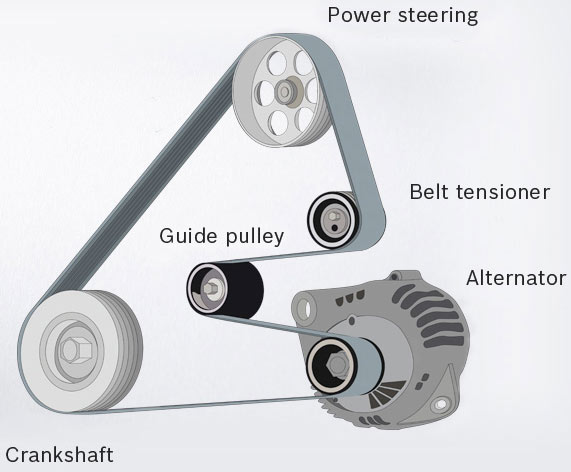

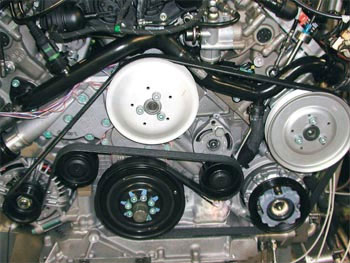

· Pk belt is mainly used for the transmission of power plants such as engine, motor, widely used in auto parts, electrical and mechanical industry
Packing

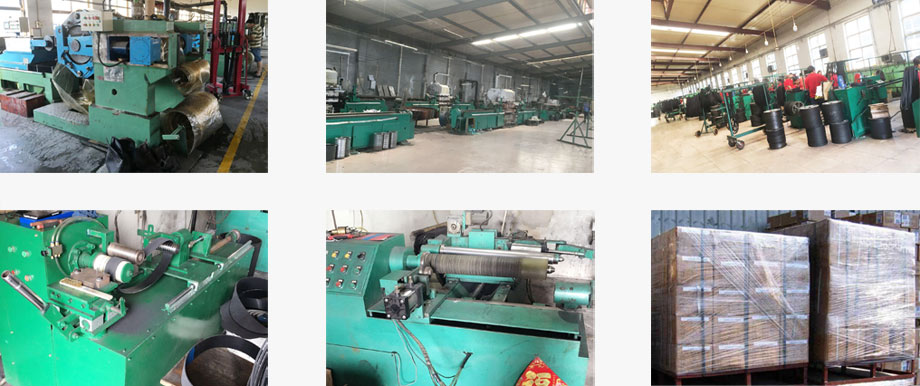

OUR EQUIPMENT
