Material:NBR
Feature:
· Wide breadth but thin belt, excellent elastic and flexible property
· High transmission efficiency under the operating environment of high-speed rotation, reverse flexible, small band pulley, etc.
· Core rubber with high tension and low elongation, while the consistent tension is maintained during the process of operation
· Excellent heat-resistance, oil-proof, and wearing resistance
· Less slip while large transmission effect during the process of operation
· Less noise during the process of operation
type | top width | pitch | height | length conversion | lengtj(inch) | angle | ||||||
3V | 9.5 | / | 8 | la=li+50 | 71"-394" | 40 | ||||||
5V | 16 | / | 13.8 | la=li+82 | 71"-394" | 40 | ||||||
8V | 25.5 | / | 23 | la=li+144 | 71"-394" | 40 | ||||||
type | top width | height | length(inch) | ||||
A | 13 | 8 | 21"-394" | ||||
B | 17 | 11 | 24"-394" | ||||
C | 22 | 14 | 59"-394" | ||||
D | 32 | 19 | 86"-394" | ||||
E | 38 | 23 | 98"-394" | ||||
Details

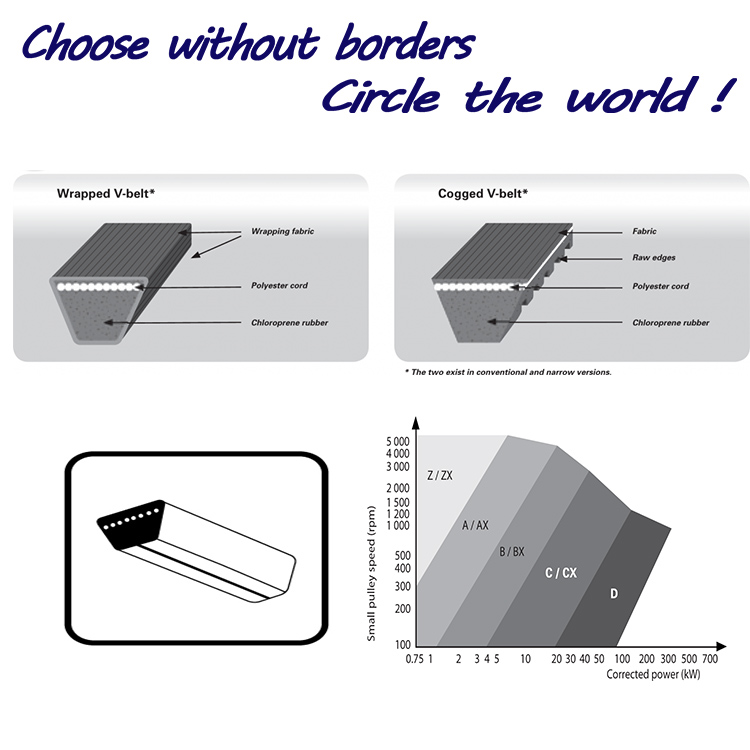

Structure
No. Name Function Material
1 Top Fabric Protect the lining tensile member Polyester Cotton Canvas
2 Buffer Rubber Support and protect the adhesive force of the tensile member CR, EPDM
3 Tensile Member Critical material to pass the dynamic force Polyester, Nylon
4 Bottom Rubber Maintain the shape of the rubber and improve its side compression performance CR, EPDM

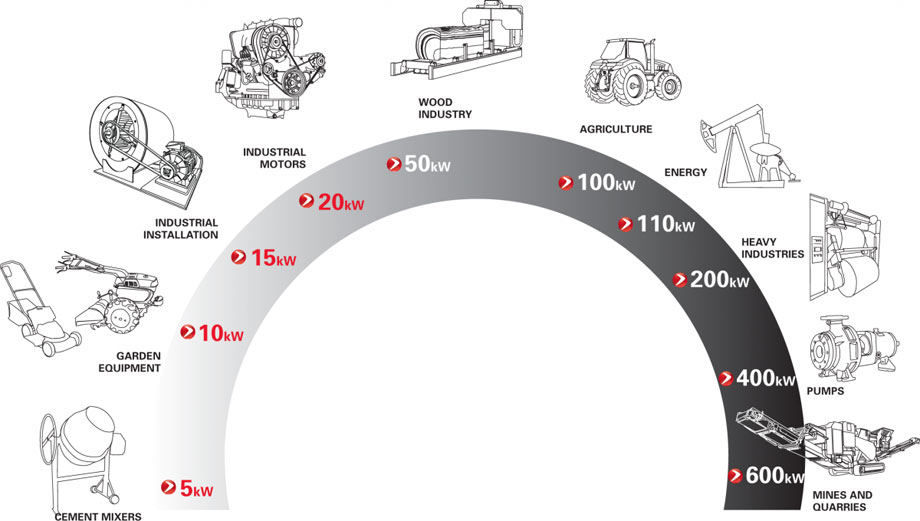

Application
Packing
OUR EQUIPMENT
